Lasers for OEM Integration

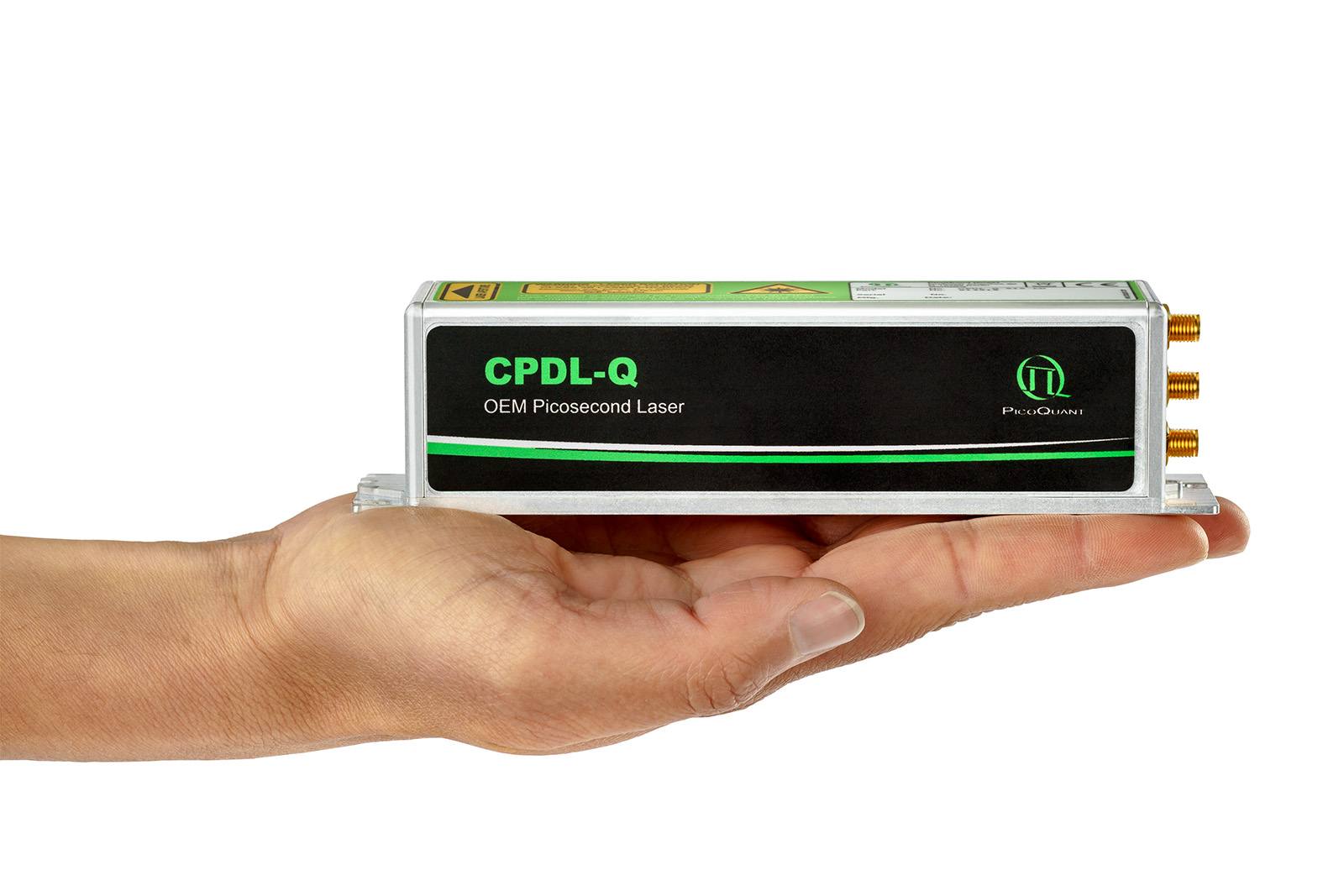

CPDL-Q Series
Smart OEM solution in visible lights
- Compact design for integration
- Available wavelength: 405 nm, 450 nm, 488 nm, 515 nm, 638 nm
- Pulsed and CW operation, fast CW switching
- Pulse widths < 100 ps
- Triggerable internally and externally, up to 200 MHz
- Fully computer controlled
Contact usPicoQuant’s CPDL-Q Series consists of a range of compact lasers suited for OEM integration. They are based on our well established picosecond pulsed diode laser technologies and can be operated via command line interface. Easy integration is possible utilizing either a vast range of internally available repetition frequencies or externally from single shot up to 200 MHz. Additionally, a flexible way of optical gating allows for the generation of pulsed bursts or fast switched CW operation with rise/fall times below 3 ns.
Fiber coupling and combiner
All CPDL-Q laser can be optionally coupled into a variety of optical fibers (multi-mode, single mode, or polarization maintaining single mode) via different connector types. We recommend FC/APC connectors for most applications, since they prevent back reflections that can interfere with laser stability. For more details, refer to our solutions for fiber coupling.
Applications
CPDL-Q lasers are suitable for a wide range of applications including semiconductor diagnostics, testing of detectors and cameras, ranging/LiDAR, seeding of amplifiers, material processing, free-space data transmission, fluorescence lifetime measurements, time-resolved refractometry, or as solid state booster to name only a few. They can easily be incorporated into larger systems such as readers, wafer testers, opticaldevices, or μJ laser systems for micromachining.
| Optical output | ||
|---|---|---|
| Power stability within 8h | < 1% (rms) | |
| Warm-up time for power and pulse shape stabilisation | < 2 min | |
| Optical Rise/Fall Time (Gating) | < 3 ns | |
| Beam circularity | 0.5...1.0 | |
| Transversale Mode M2 | ≤ 1.4 | |
| Beam dimension2 | 0.8 ± 0.30 mm | |
| Polarisation | linear, vertical | |
| Polarization Extinction Ratio (PER) | > 30:1 (typical >100:1) | |
| Coupling efficiency (single-mode pm fibre) | > 40% | |
| Operation | ||
| Internal Repetition rate | 1 kHz to 999 kHz (step size 1 kHz) 1 MHz to 200 MHz (step size 1 MHz) |
|
| External range | 0 Hz to 200 MHz | |
| External trigger level | -1V ... +5V into 50 Ohm | |
| Timing Jitter | < 12 ps (rms) | |
| Trigger out | NIM | |
| ON Time Gate | freely adjustable from < 10 ns to 1 ms | |
| OFF Time Gate (as a factor of ON Time Gate) |
freely adjustable from 1 to 255 | |
| Temperature range | 15 – 35 °C | |
| Humidity range | < 80% (non condensing) | |
| Dimension | ||
| Dimensions (W X H X L) mm | 40 x 40 x 160 | |
| Weight | 0.31 kg | |
| Interface | ||
| Connector | Molex-Micro-Fit 2x7 | |
All Information given here is reliable to our best knowledge. However, no responsibility is assumed for possible inaccuracies or omissions. Specifications and external appearances are subject to change without notice.
The table below is a non exhaustive list of possible wavelengths based on data from recently manufactured laser heads. Custom tailored solutions can be realized on request. Further wavelength and other other specifications such as shorter pulse widths or higher powers might be available on request. Feel free to to contact us with your requirements.
| Wavelength (± 6) [nm] |
Type
OEM Stand alone
|
Pulse width1 (FWHM) [ps] |
avg power Narrow Pulse2 [mW] |
avg power Narrow Pulse3 [mW] |
Max cw power [mW] |
| 405 | CPDL-Q-405 | 110 ± 20 | 3 | 10 | 50 |
| 450 | CPDL-Q-450 | 80 ± 15 | 3 | 10 | 50 |
| 488 | CPDL-Q-488 | 110 ± 20 | 3 | 10 | 50 |
| 515 | CPDL-Q-515 | 130 ± 30 | 3 | 10 | 50 |
| 640 | CPDL-Q-640 | 80 ± 15 | 3 | 10 | 50 |
1 Shortest pulse width at Narrow Pulse operation mode. Pulses are deconvoluted with 30 ps detection IRF. Shorter pulse widths are available on demand.
2 This is the maximum average power at Narrow Pulse mode setting and max repetition rate.
3 This is the maximum average power at Broad Pulse mode setting and max repetition rate. A pulse broadening up to 500 ps FWHM is possible at maximum intensity setting.
All Information given here is reliable to our best knowledge. However, no responsibility is assumed for possible inaccuracies or omissions. Specifications and external appearances are subject to change without notice.
Laser modules from the CPDL-Q Series can be used for various applications including:
- Materials science and chemical research
- Life science
- Photoluminescence lifetime and quantum yield measurements
- Fluorescence lifetime measurements
- Time-resolved microscopy and single molecule detection (FLIM, FRET, PIE-FRET, FCS)
